ESD PVC

① Excellent anti-static function
– surface 106~108 Effectively prevents static electricity generation with a surface resistance value of ohm/square.

② Excellent surface hardness (PMMA:4H, PC:B)
– The surface is hard coated so it is safe from scratches.

③ Excellent chemical resistance
– The surface is hard coated, so it has excellent durability and weather resistance against chemicals such as solvents.

④ Beautiful surface
– The surface is glossy and transparent, retaining the unique appearance of acrylic, PC, and PVC (transparent).

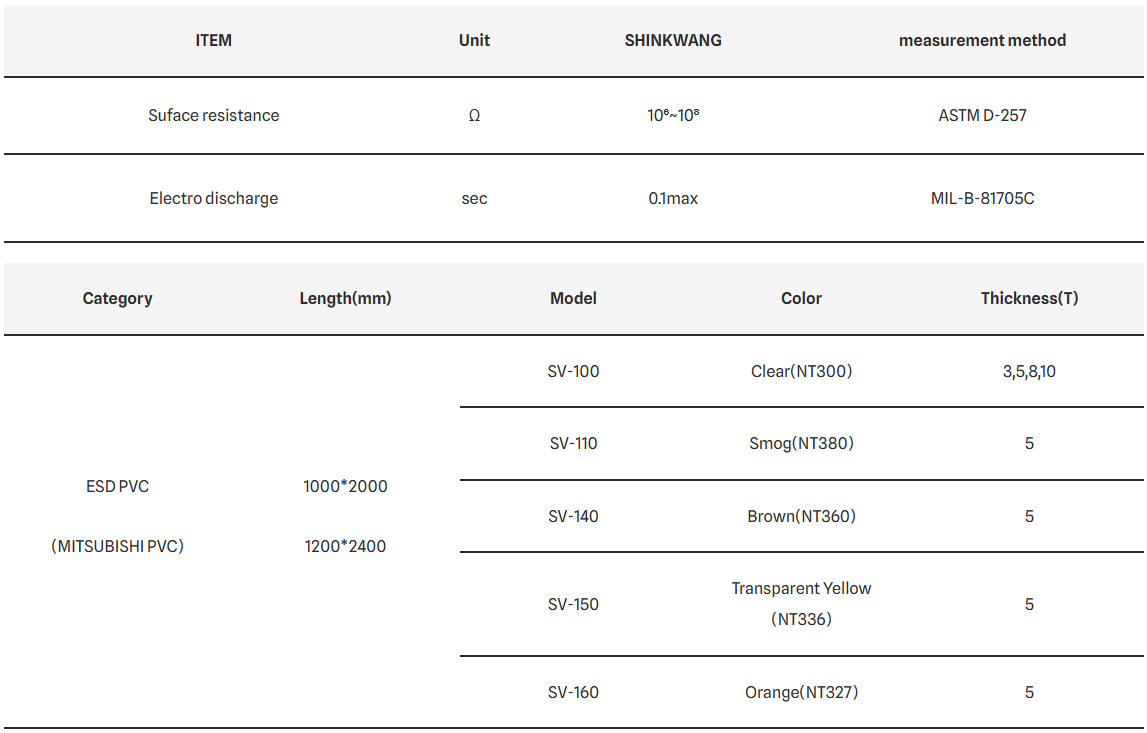

  • Electrical Characteristics
ITEM Unit SHINKWANG measurement method
Suface resistance Ω 10⁶~10⁸ ASTM D-257
Electro discharge sec 0.1max MIL-B-81705C
Category Length(mm) Model Color Thickness(T)

ESD PVC

(MITSUBISHI PVC)

1000*2000

1200*2400

SV-100 Clear(NT300) 3,5,8,10
SV-110 Smog(NT380) 5
SV-140 Brown(NT360) 5
SV-150 Transparent Yellow (NT336) 5
SV-160 Orange(NT327) 5
  • Production may vary slightly depending on the production lot, so please make sure to check the sample before requesting production.
