ESD POLYCARBONATE

① Excellent anti-static function
– surface 106~108 Effectively prevents static electricity generation with a surface resistance value of ohm/square.

② Excellent surface hardness (PMMA:4H, PC:B)
– The surface is hard coated so it is safe from scratches.

③ Excellent chemical resistance
– The surface is hard coated, so it has excellent durability and weather resistance against chemicals such as solvents.

④ Beautiful surface
– The surface is glossy and transparent, retaining the unique appearance of acrylic, PC, and PVC (transparent).

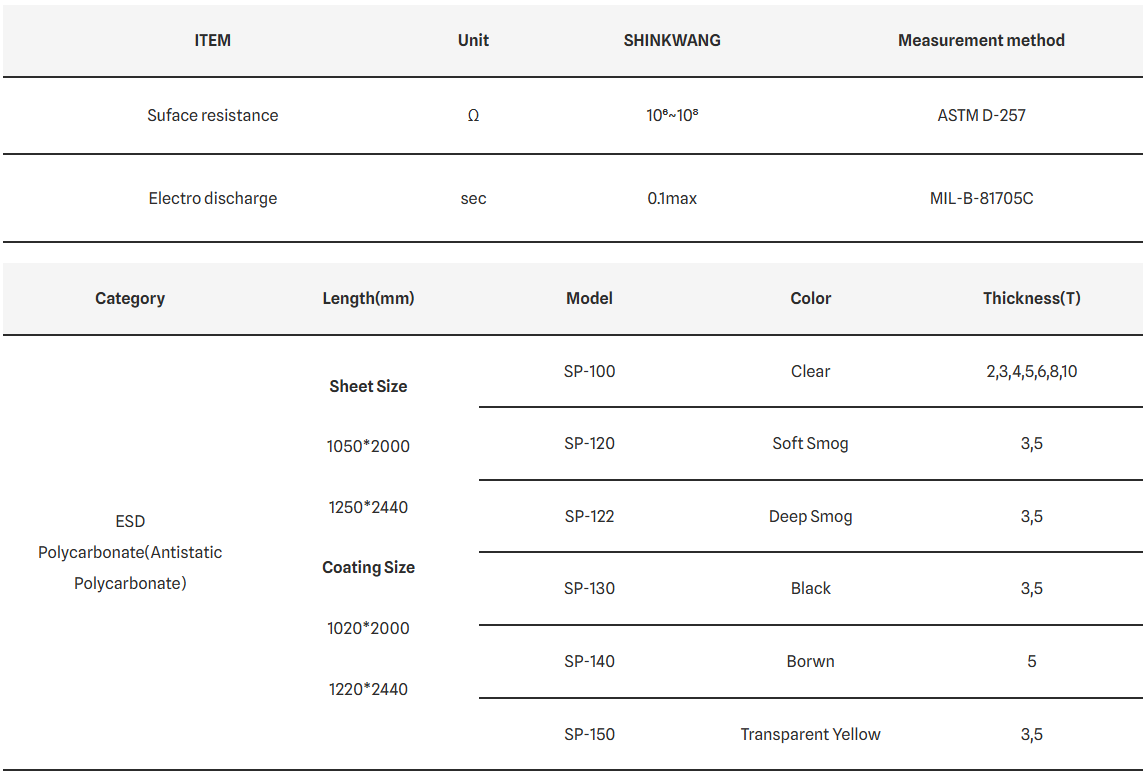

  • Electrical Characteristics
ITEM Unit SHINKWANG Measurement method
Suface resistance Ω 10⁶~10⁸ ASTM D-257
Electro discharge sec 0.1max MIL-B-81705C
Category Length(mm) Model Color Thickness(T)
ESD Polycarbonate(Antistatic Polycarbonate)

Sheet Size

1050*2000

1250*2440

Coating Size

1020*2000

1220*2440

SP-100 Clear 2,3,4,5,6,8,10
SP-120 Soft Smog 3,5
SP-122 Deep Smog 3,5
SP-130 Black 3,5
SP-140 Borwn 5
SP-150 Transparent Yellow 3,5
  • Production may vary slightly depending on the production lot, so please make sure to check the sample beforerequesting production.
